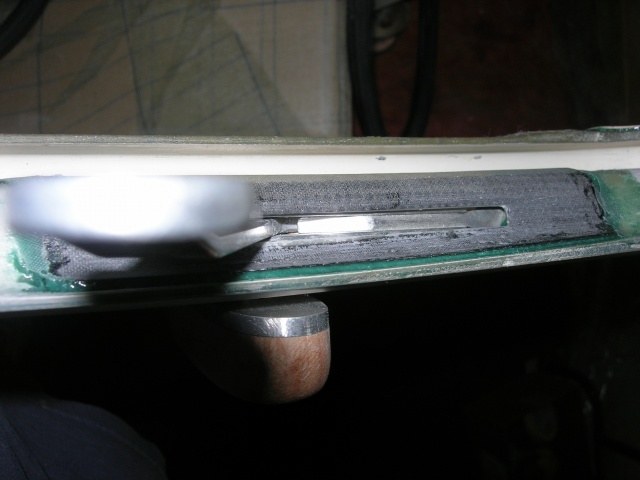

Door mechanism cover install 3.

Starboard side has a nice clean slot with smooth action.
Since we had the lever positioned where the internal mechanism was closest to the cover, (just barely touching), during cure, it just kisses the cover near full opened during throw.
Y10-11-08

Date: 11/07/2010
