Servo2

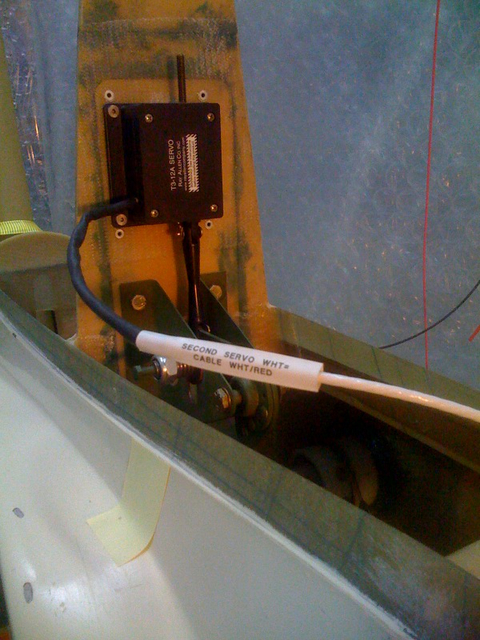

Shielded heat shrink over staggered connections. Color coding on 4 of the 5 wires matched servo. Hoping to keep radio transmission from affecting pitch indicator, and servo motor from causing static in radio. White heat shrink has wire information including what is needed to run servo from a 9 volt battery on ground to get anti-servo tab to neutral so as to allow flight home in the event circuit failed.
Y8-11-26

Date: 11/26/2008
Size:
Full size: 600x800
