CVR2

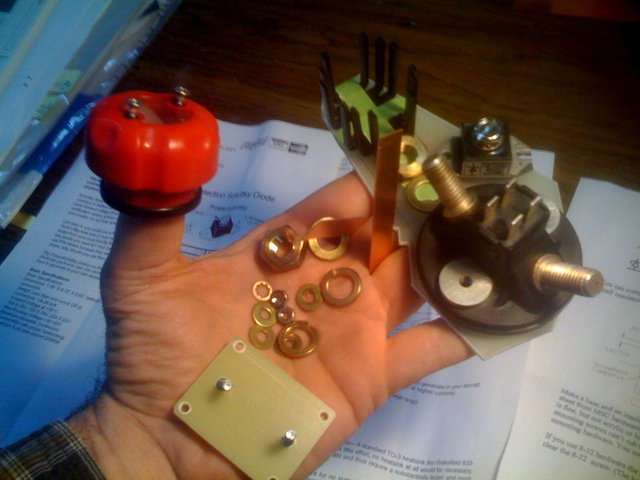

All this stuff to live inside headrest:
****Flaming River battery switch
****Schottky E-buss feed diode and heat sink
****G-10 mounting board to be attached to battery switch and will mount Shotky diode to
****Buss bar to power E-buss feed Shotky diode from battery side of battery switch. See next album: Buss-ted headrest for above items assembled.
