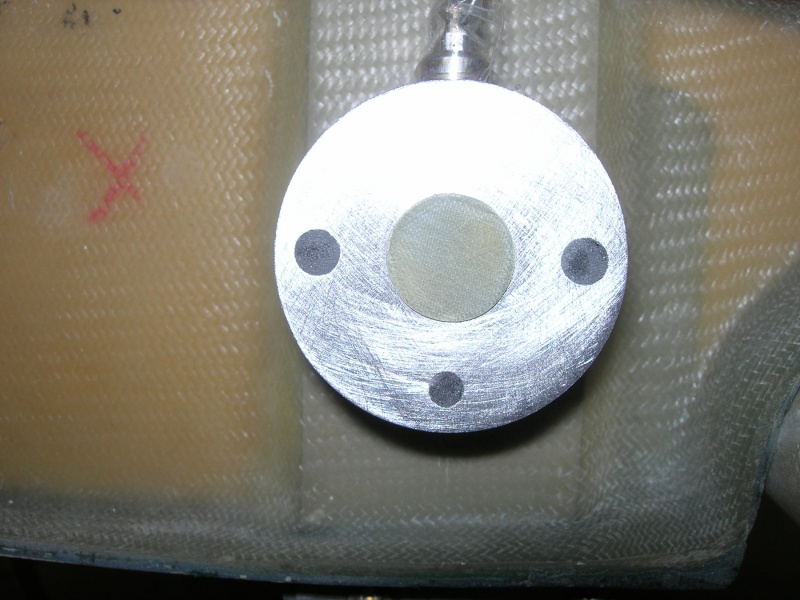

Bonding of Starboard lift pin sockets 1.

After 4 BID layup on rear lift pads cured, we verified fit is still acceptable.
We proceeded to bond on dime sized .032" G10 scuff sanded spacer to starboard socket with JB Weld KWIK.
Y10-10-19

Date: 10/19/2010

Size:
Full size: 1800x1350

next last

first previous

Bonding of Starboard lift pin sockets 1.

Photo Properties

summary details

Make	NIKON	Model	E5900
Aperture Value	f/4.8	Color Space	sRGB
Exposure Bias Value	0 EV	Exposure Program	Program
Flash	Flash, Auto-Mode	Focal Length	7.8 mm
ISO	AUTO	Metering Mode	Multi-Segment
Shutter Speed Value	0.02 sec	Date/Time	Tue 19 Oct 2010 08:26:53 PM UTC
