This is the gap at high point on port door.

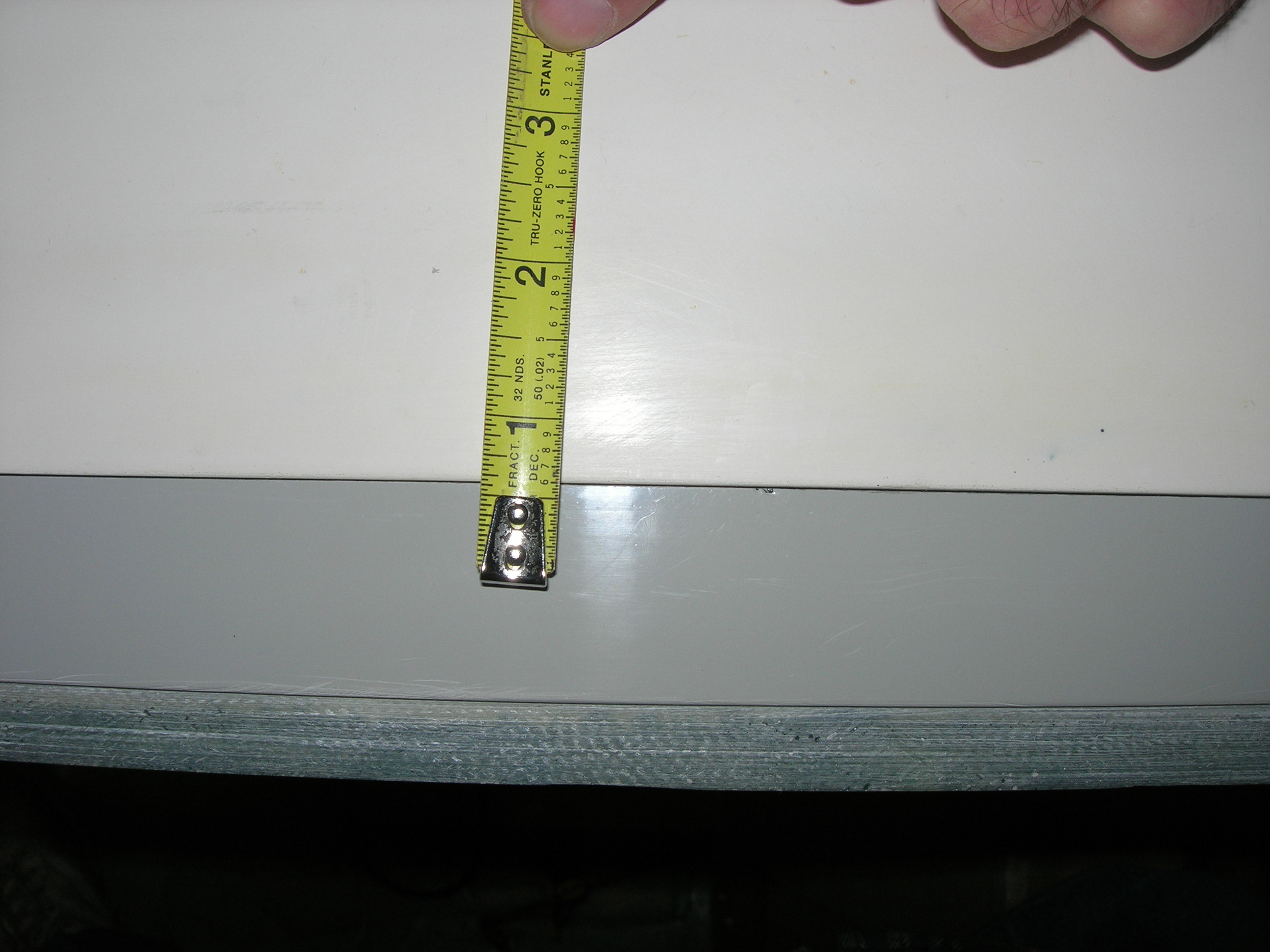

This is the gap at high point on port door. This allowed easy registration when hinging. Will need to open gap a bit, but will put a chamfer on bottom of door so top gap will not need to be as large compared if you had a 90 degree edge.
Y9-10-14

Date: 10/15/2009

Size:
Full size: 2592x1944

This is the gap at high point on port door.
