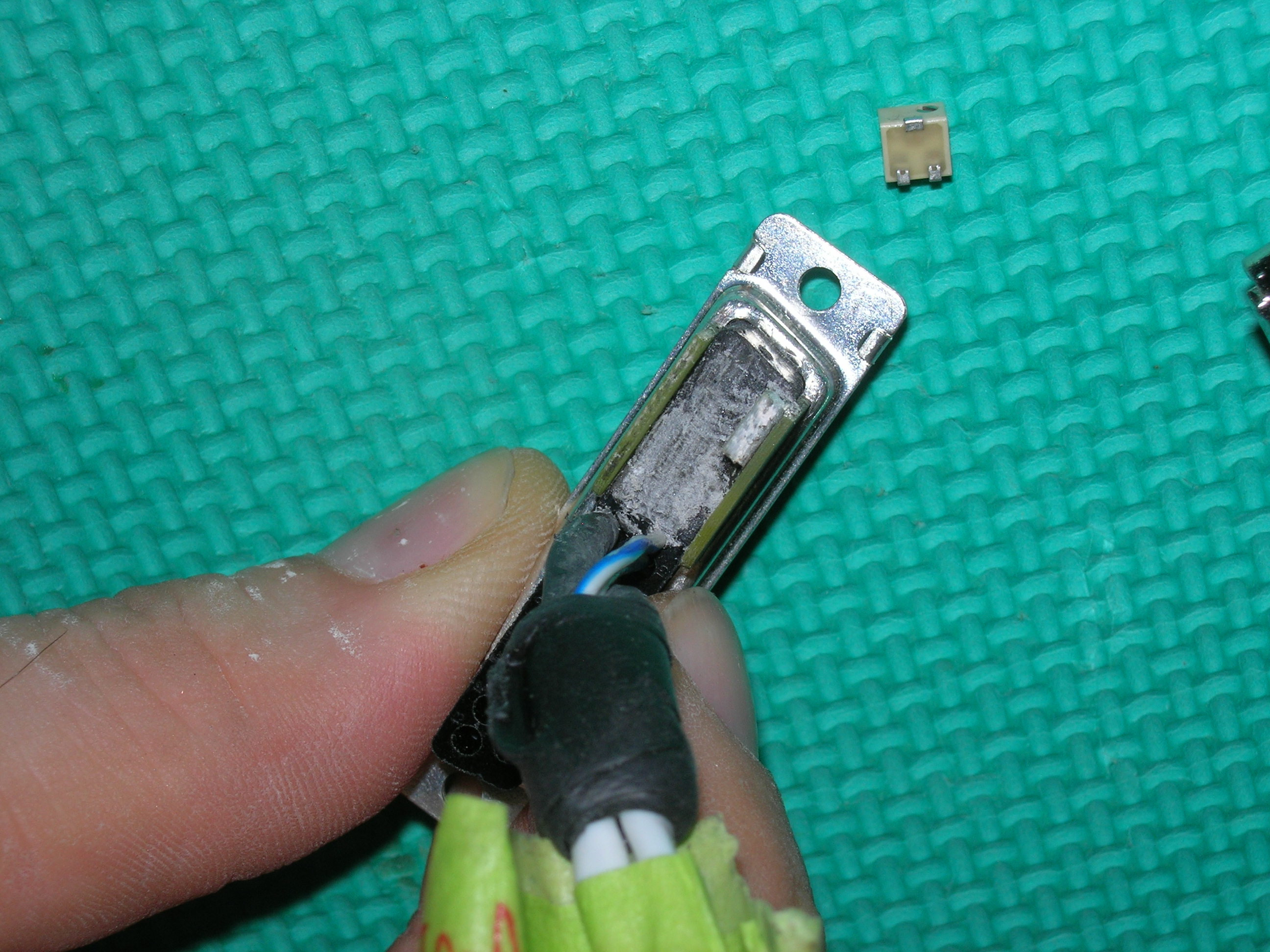

Dynon AOA audio pot 2.

Richie first scuff sanded 1/2 of connector that is not being used (including the holes) and first filled holes with JB Weld KWIK. Then JBed some thin G-10 to sides after scuff sanding all. then JBed a spacer G-10 to make pot a nice fit. This is a 1/4 watt 5 turn pot. Plenty small. Will solder wires to pot surface mount tabs then JB the pot and wires between G-10 sides.
