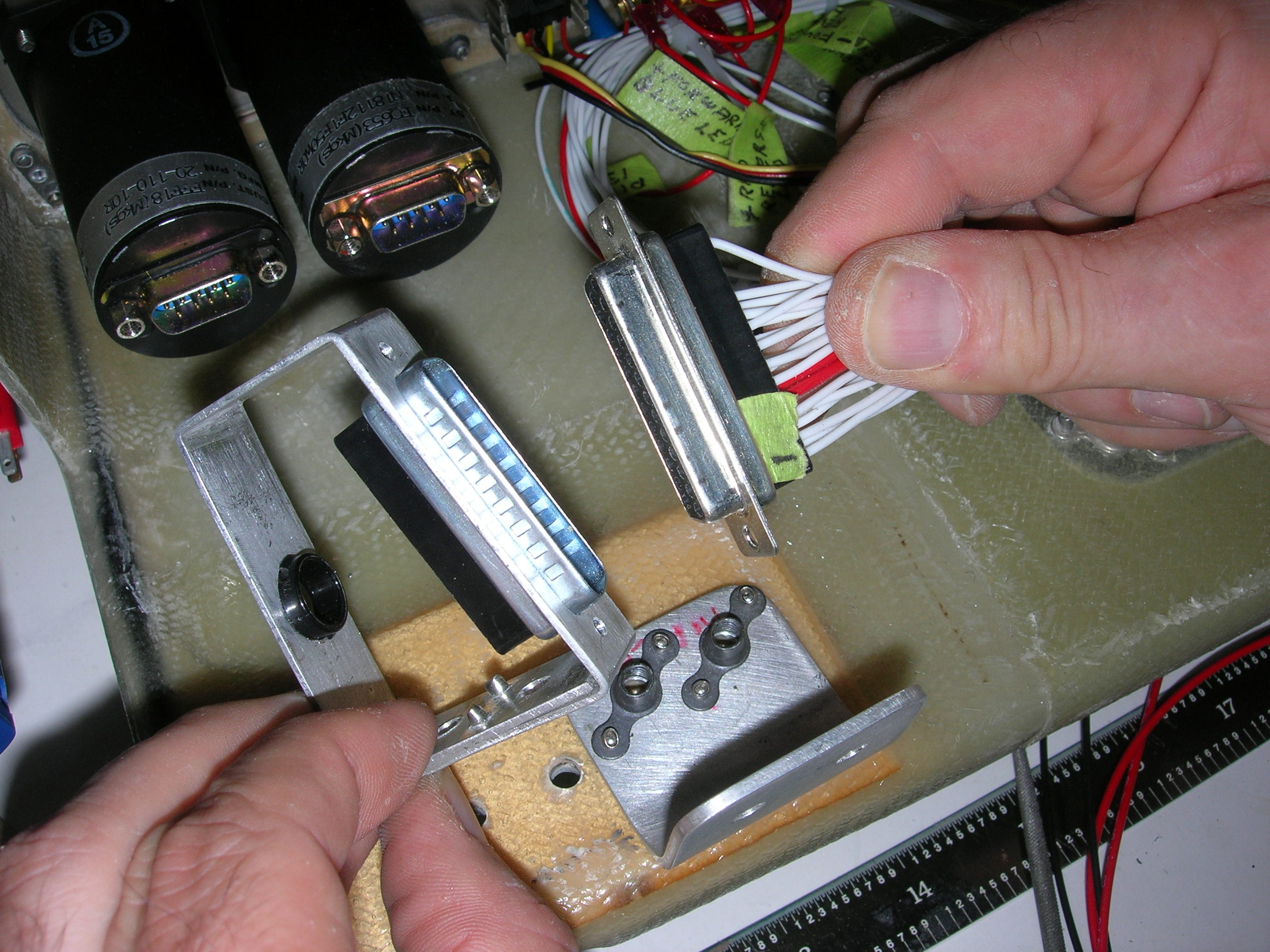

Lower port insert firewall connector 1.

Art fabricated this aluminum bracket to hold the female half of 25P D-sub connector to firewall.
It is mounted to the aft side of the lower port instrument module bracket.
By making shape a trapezoid it has less of a tendency to parallelogram.
Nice job!
Y10-09-09
