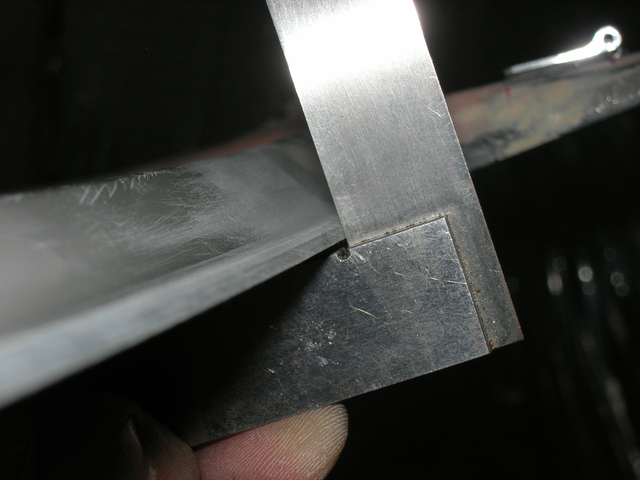

Gave the top of door a bit more clearance to fuse.

Gave the top of door a bit more clearance to fuse.
To prevent having to make the gap larger, put a bevel on the bottom of the top inboard side of door to clear fuse when initial opening movement occurs.
Y9-10-17

Date: 10/16/2009

Size:
Full size: 2592x1944

Gave the top of door a bit more clearance to fuse.
