Aligning_wings_pins_10

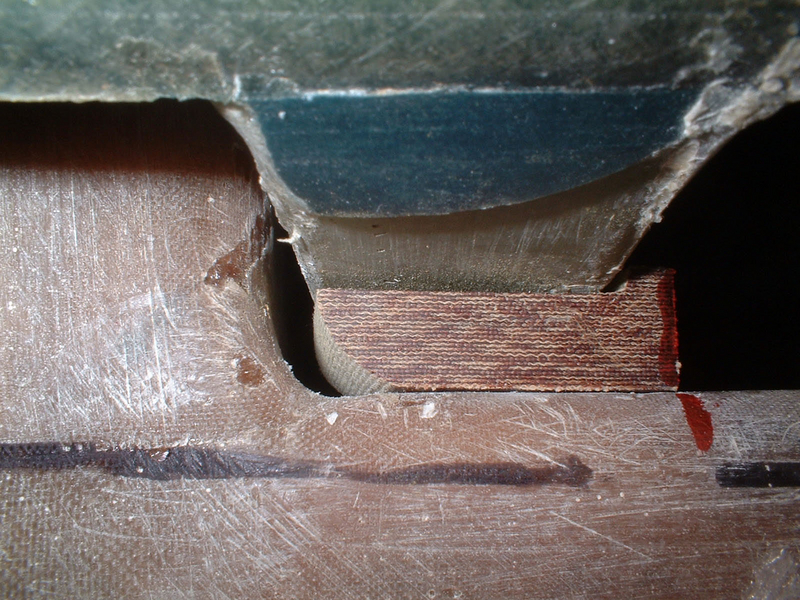

Steve Hagar helped me make this shim that fits under the spar. Works a treat getting the port pin to line up with the hole in the spar.

Date: 04/15/2006

Size:
Full size: 1600x1200
