Tailplane

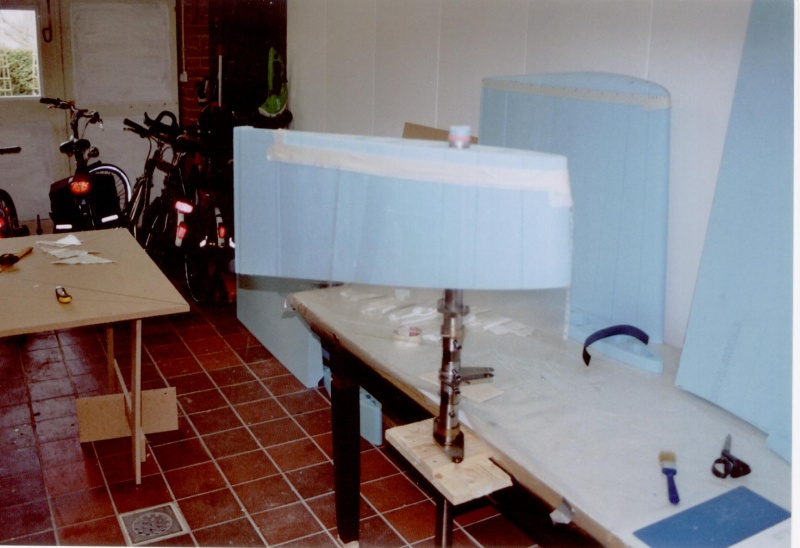

The tailplane consists of two halves, the inner one of which needs a rib to be laid up on it. This will later disappear inside when the two halves are joined and covered. I make an improvised tool out of the torque tube, which also makes it easy to turn and work on on all sides.

Date: 01/26/2010

Size:
Full size: 1728x1184
