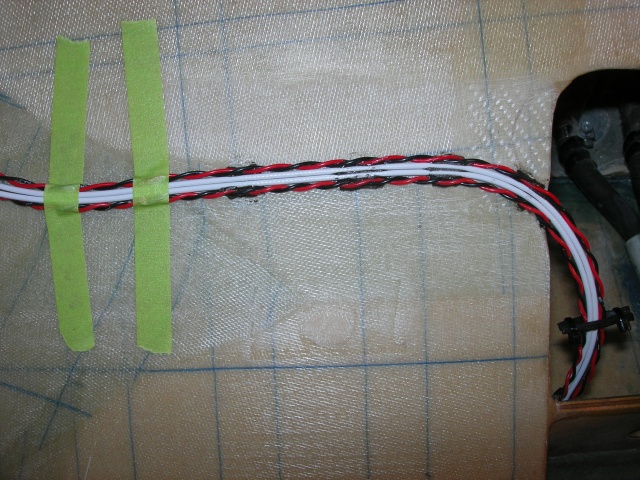

Here we are looking at Pilot side thigh support wire conduit. Two 914 flowscan 201B's are located under airbrake cover, run aft, soldered to extension wires held in place by two glassed in place Tywrap holders, then run up to top surface of thigh support.
Wires will be held by an Expancel fair and 2 thin model aeroplane glass plies over the top. Entrance for wires are filed nice and rounded and there will be 2 more 1/2" wide thin model aeroplane glass plies on the edge for added strength.
"WHEN" I have to remove these wires, could easily cut them out with a razor blade.
Y10-08-03
