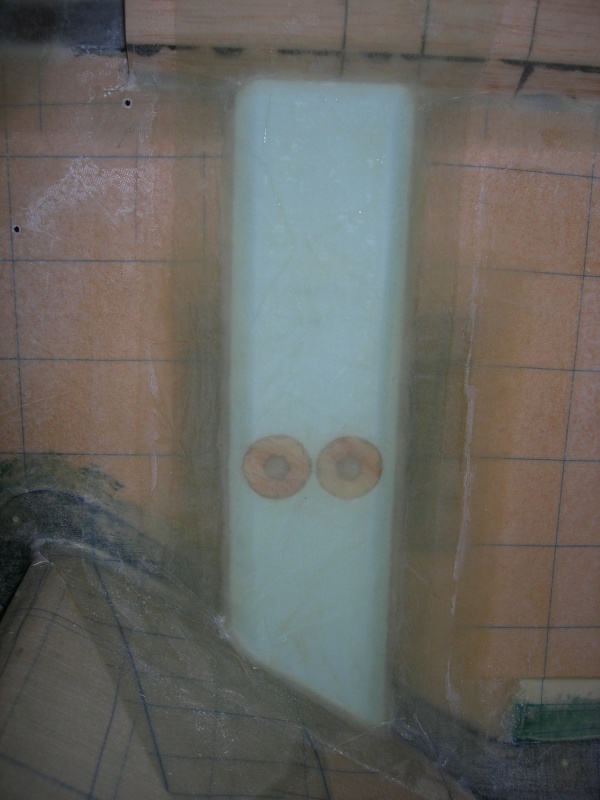

Front Starboard fuse stiffening for lift socket 12.

Peel ply removed and flight ready!
BTW I checked the front lift pin to wing root clearance with a feeler gauge and the socket is bottoming on the root rib, not the tip of the lift pin hitting the G-10 plug that was bonded in place to keep Flox from filling the socket hole when bonding in place the foam stiffener.
Y10-10-25

Date: 10/25/2010
Size:
Full size: 1350x1800
Front Starboard fuse stiffening for lift socket 12.
