Mid door pin and striker for port door 4.

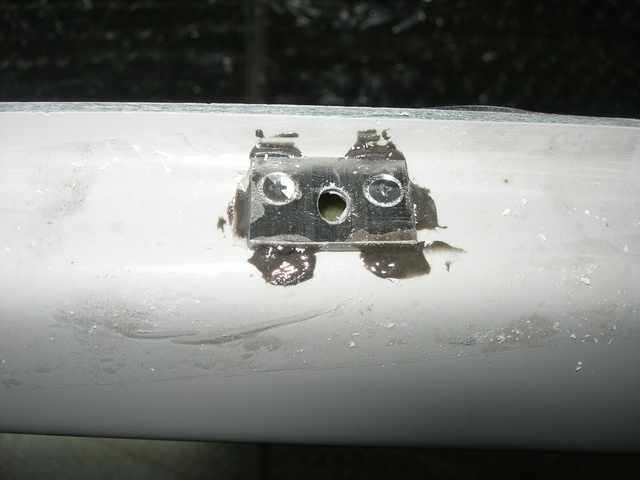

This shot is striker on the mid bottom of port door.
On this door instead of building door up so plate is 90 degrees to outside of door, I just mounted it flat to the bottom of door. Plate here is temporarily held to door with JB KWIK bonded to 3M 375 packaging tape that is applied to bottom of door. Then there are two #4 flat head screws that are also installed. Final assembly will use Redux and 1/8" stainless pop rivets instead of sheet metal screws.
Y9-12-29
