Fin plumbing 1.

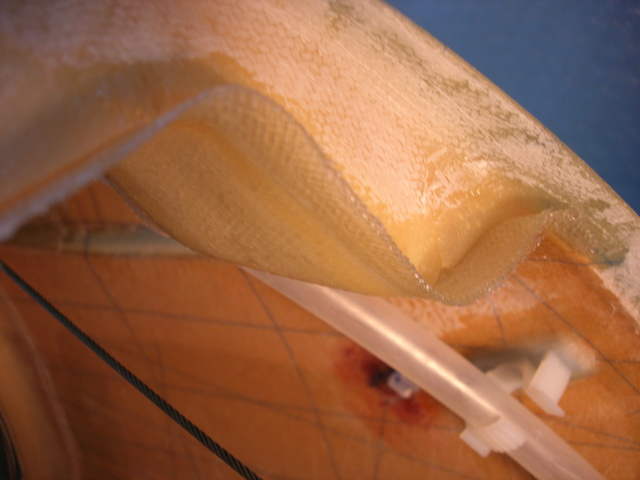

Cut edges off of neckbrace, floxed corners and 3 BID to make gap wider to allow more clearance for mass balance centering cables when deflecting full down.
Y9-04-13

Date: 04/13/2009
