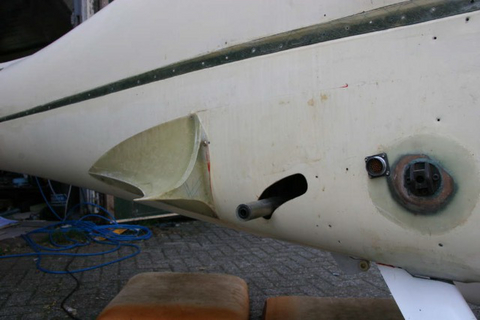

Frans 6.

With wings demounted, this portion of the fairing remains...note screw #2 (concealed) behind the seam...and note screw #3 at the rearmost portion of the lower fairing (hard to see, but zoom in and you can see it)...Frans made up the closure panel...rather clever I thought

Date: 08/19/2009
