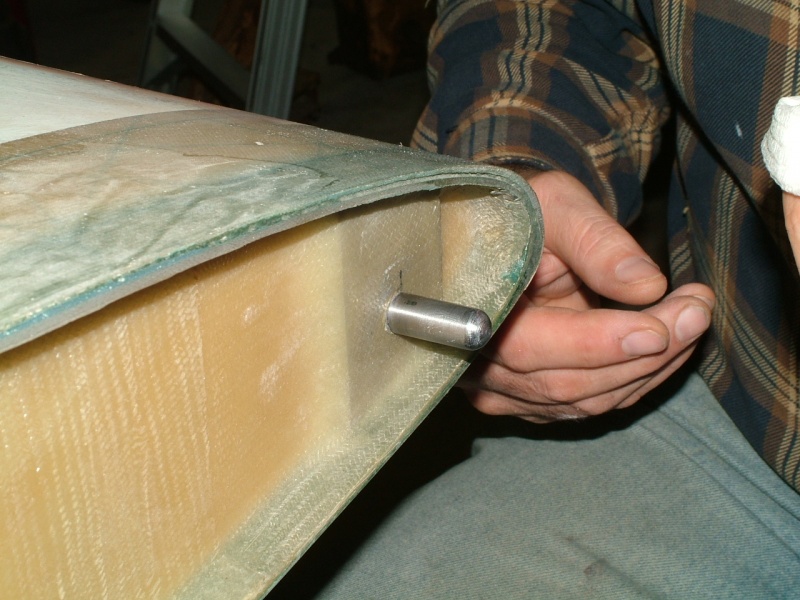

Bonding Port lift pin sockets 4.

Front lift pin is now waxed.
We are going to grease it as well.
On the Starboard wing, the Redux grabbed hold of the tip of the pin all too well. Good thing we inserted a Pixie Stick that allowed removal without breaking off the socket.
Y10-10-28
