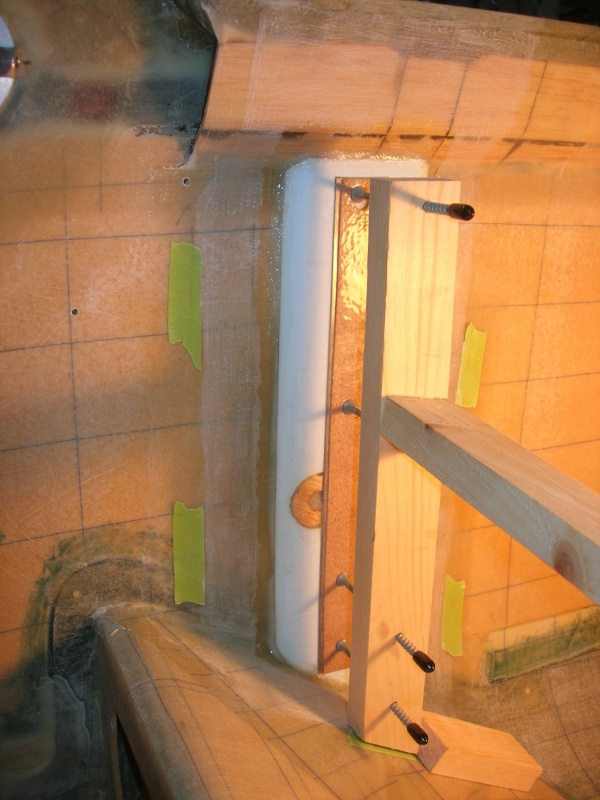

Front Starboard fuse stiffening for lift socket 6.

Alan and I noodled this design for a jig to hold the foam in place for cure on the way home the prior night.
I drilled the holes for the sheetrock screws only small enough to hold without stripping, yet easy enough to turn with your fingers.
I did a beautiful job of taping the flexible ruler on the cork side with 3M 375 packaging tape.
THE CORK SIDE WAS THE SIDE THAT WAS SUPPOSED TO BE AGAINST THE FOAM!
Oh well, we pulled it off after it got plenty tacky and completed 3 BID layup.
Y10-10-25

Date: 10/24/2010
Size:
Full size: 1350x1800
