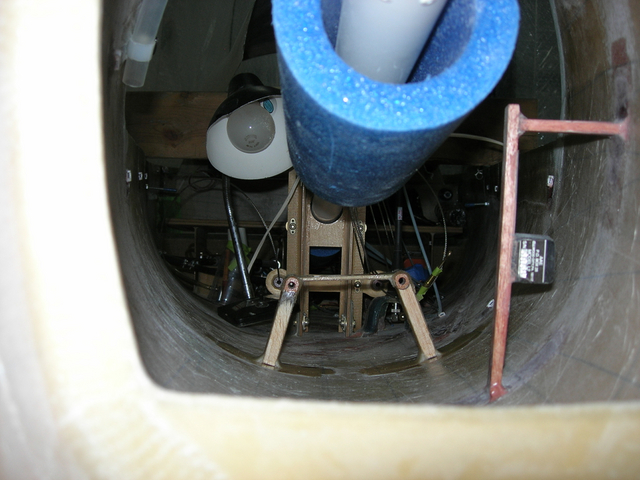

Rudder_cable_tower_1

We didn't want too much chance of flexure so added flox, laid up 1 BID, added more flox and laid up second BID. When the layup was complete it was an afterthought to tie the two towers together. Very stiff side to side.
Y9-04-16

Date: 04/14/2009

Size:
Full size: 2592x1944
