Port rudder cable guide 3

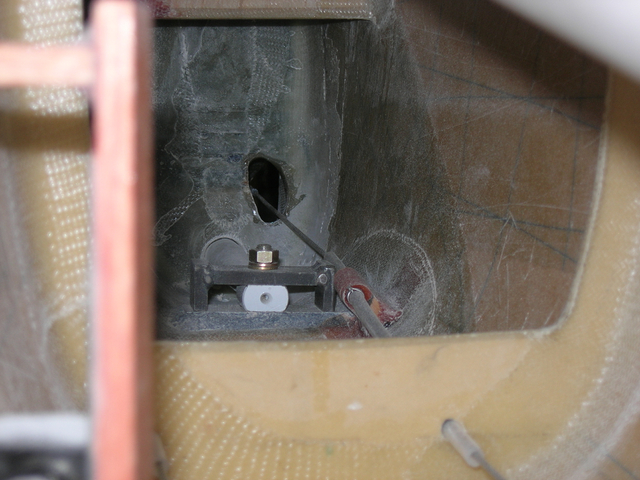

Official port rudder cable installed. Bud thought 3/4" space from tailwheel spring is adaquite with 3 BID reinforcement on front face/fuse.
We just have 3/4" spacing on front face and perhaps 1/32" less on aft face. For comparison tailwheel spring where it goes through sternpost is about 1/16" larger than 3/4".
