Fin capping 1.

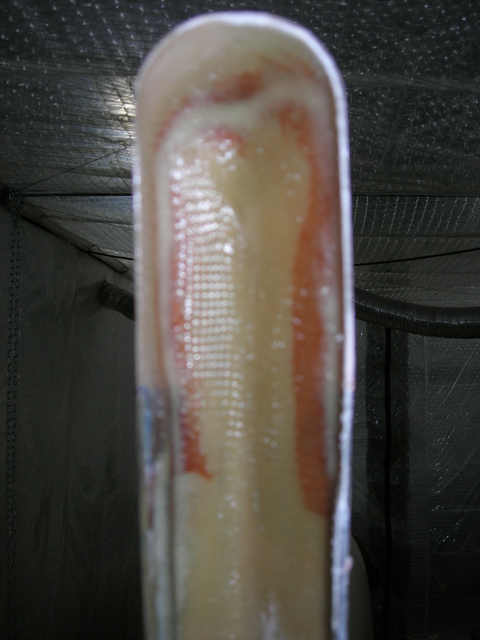

You can make out in this blurry pic that the starboard flange is gone in the area the top rudder hinge sits.
This 3 BID layup puts back strength, then will get 2 more BID for hinge reinforcement.
Y9-05-12

Date: 05/12/2009
