Aft fuse conduit run 15.

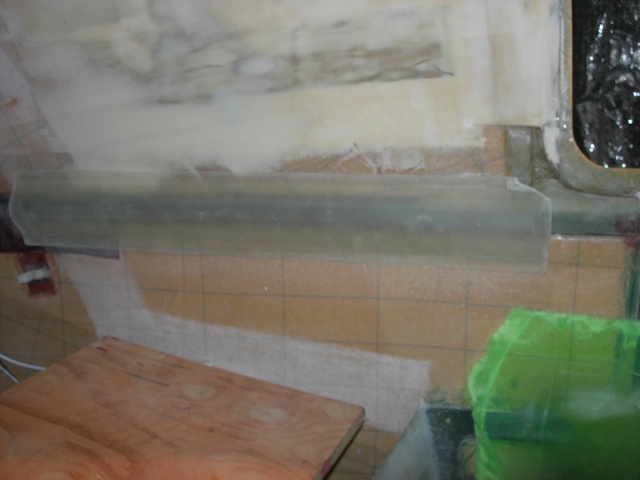

Port conduit taped in position after being cleaned up.
Note forward edge where, (there was no tape), it bonded to fuse. No problem since this area will be removed.
Y10-08-21

Date: 08/20/2010
