Front fuse conduit run 22.

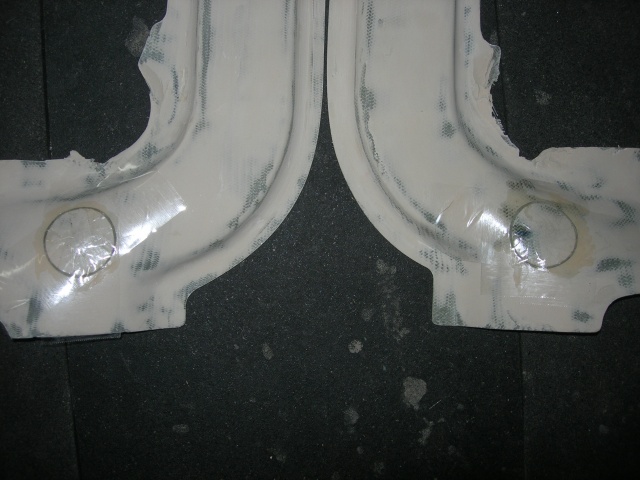

Wayne cut out access holes, then taped the front, back and sides of covers after making them nice and round, then floxed them in place and laid up 3 thin model aeroplane plies of cloth to make a flange on the inside.
He cut 1" holes in layup to allow easier removal since we floxed the edges of hole to get a nice fit.
Y10-09-14

Date: 09/14/2010
