Vertical upright, swing-arm and generator install 2 of 7.

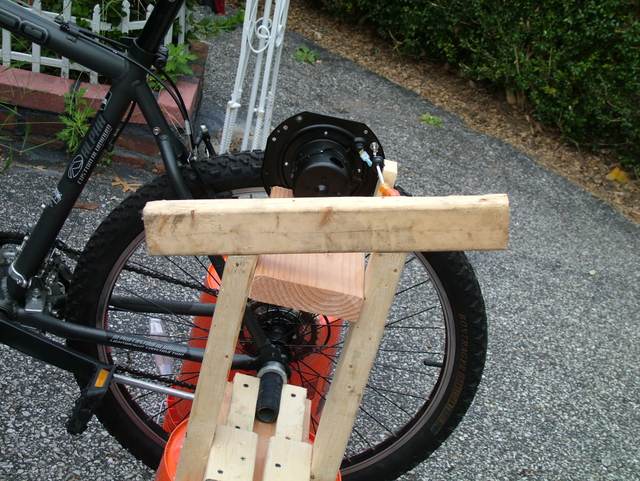

If your choice is option A) Electrical Box, you must cut the 2 x 3 uprights on a 15 degree angle (off of 90 degrees) in order to allow the pedalee to see meters when pedaling.
