I think this is going to work out great!

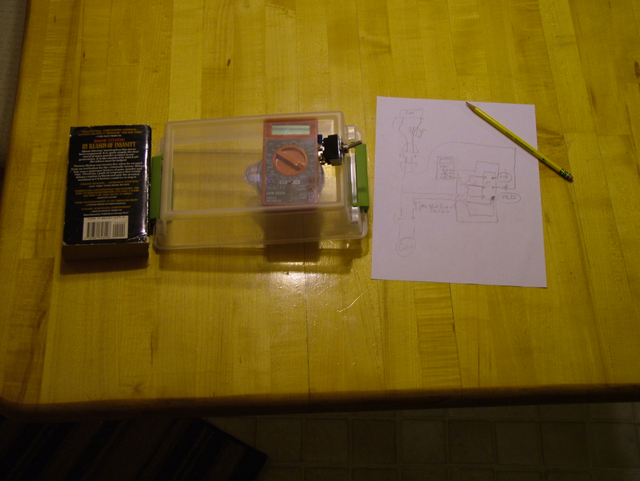

When changing the generator swing arm position, I will extend the two 2 x 4s higher, and not only that but on an angle with them at the appropriate length. The idea is to screw the lid to those 2 x 4s and it will present the switch and VOM at a nice angle with easy access for the pedal-er.

Select the higher resolution and you can just about make out first draft schematic.

I really need the Astroflight Whatt meter in hand so I can assemble components in the most harmonized fashion.
Y11-09-05
