DSCF0770

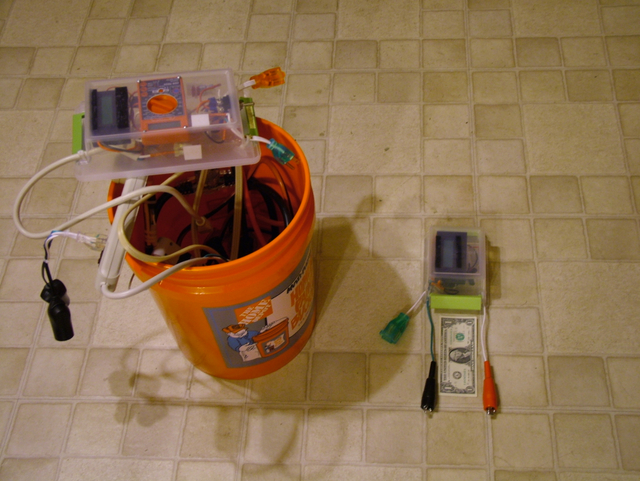

I also believe Ron's Electrical design goals for the test bed has been met with the smaller Electrical Box on the right side.
There was a considerable savings on the required build time and component cost as compared to building an identical unit to the larger Electrical Box.
