Port instrument insert 2.

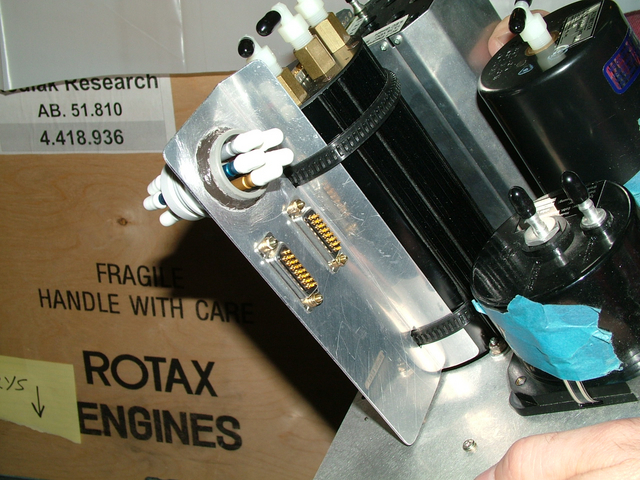

Beat 5052 aluminum around and engine hoist to fit Dynon body, then made two holed\s for "kool" all nylon McMaster screw style hose clamps.
Y10-04-22

Date: 05/02/2009

Size:
Full size: 1280x960
