Rigidize/size/atize top center of instrument module 1.

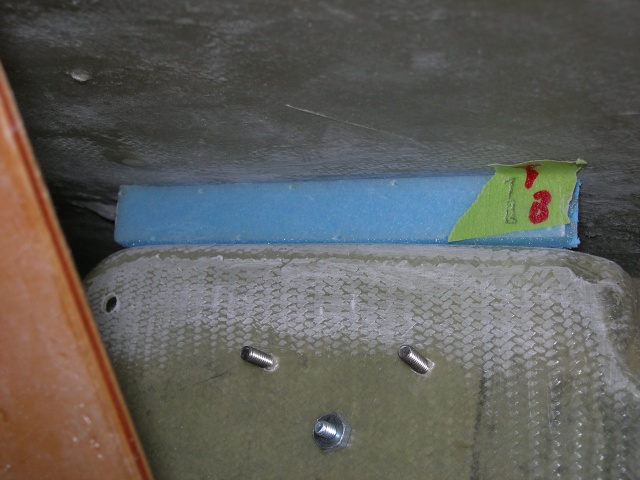

The top and center of instrument module was pretty flexible. Since there are flat spots in that area that need fill, sanding would be problematic. Thus added a small piece of Depron foam. Will Q-Cel in place, then 1 BID.
Y10-02-14

Date: 02/07/2010
