B3

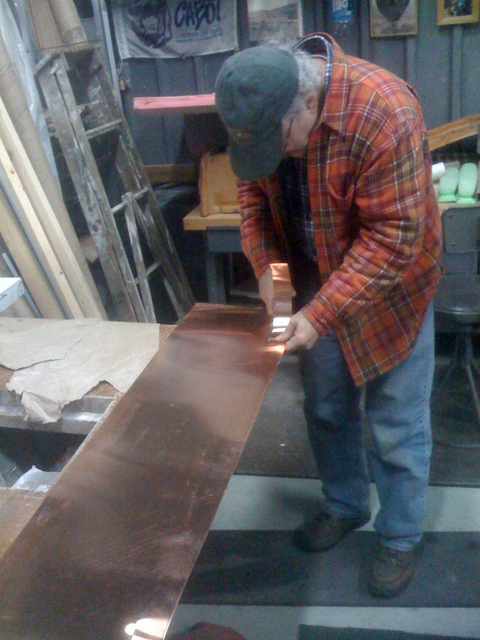

OK now to wire up port negative fat wire from battery (#4 CCA) to a ground buss on starboard headrest using thin, light and conductive .032" thick copper alloy 110 .750" wide and 4 feet long.
Y9-01-04

Date: 01/04/2009

Size:
Full size: 600x800
