Bb8

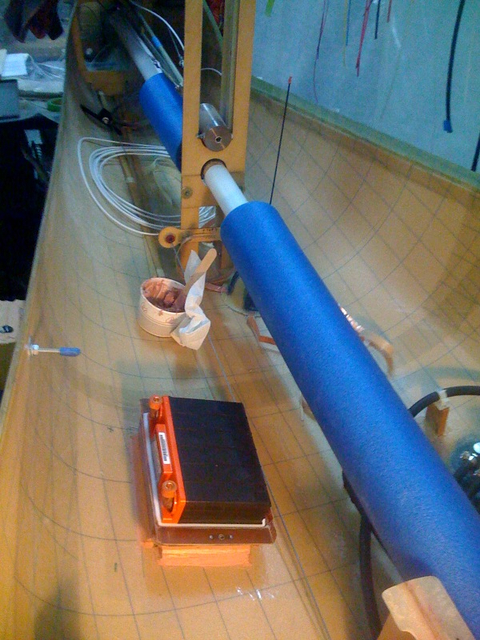

Battery tray contact area filled and set in place onto packaging tape. Once cured will trim off excess Expancel/Aeropoxy, scuff sand fuse and layup 3 BID for semi permanent installiation. Not too permanent though, cut 3 BID and can fairly easily break balsa/Expancel standoff (at least 1/2" contact area) if battery tray ever needs to be removed.
Y9-02-01

Date: 02/01/2009

Size:
Full size: 600x800
