Cu13

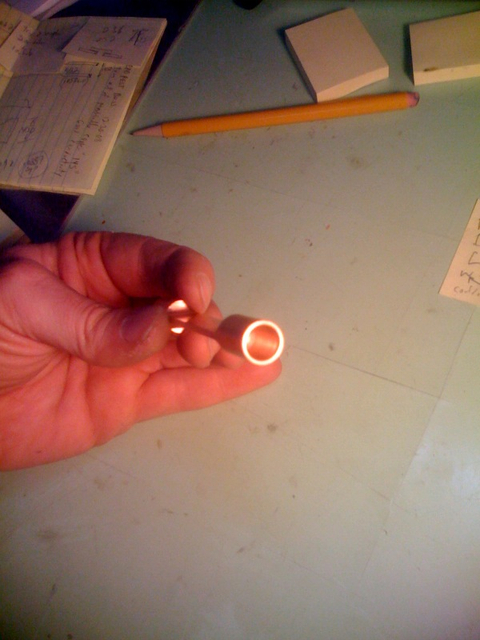

First turned OD to .450", length to 3.50", drilled a hole .750" deep for #4CCA copper clad wire (.344"), used a radiused counter sink to make a nice entrance for stranded wire and help with preventing a stress riser from sharp edge when wire is flexed.
Y9-01-02

Date: 01/02/2009
