LL10

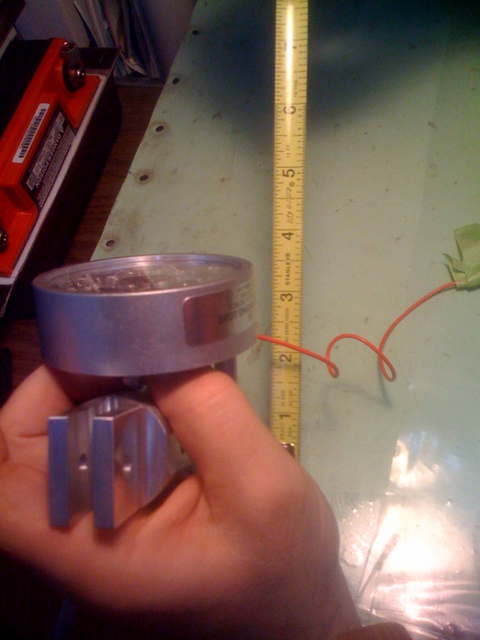

This will be approximate frontal area with gear retracted. Still needs finned heat sink and fairing. The Taxi LED will be at lesser angle of attack as compared to the Landing LED when gear is retracted, but substantial less frontal area on both when retracted compared to when down and locked.
Y9-01-15

Date: 01/15/2009
