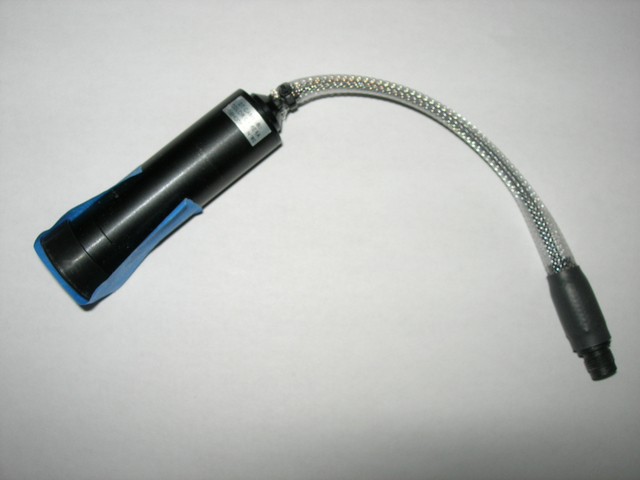

Camera 6.

We put some expanding sleeve wrap on cable for extra protection for service loop. Ty wrapped at camera end and adhesive lined shrink wrap at connector.
Y9-03-28

Date: 03/26/2009
