Fin rib conduit 1.

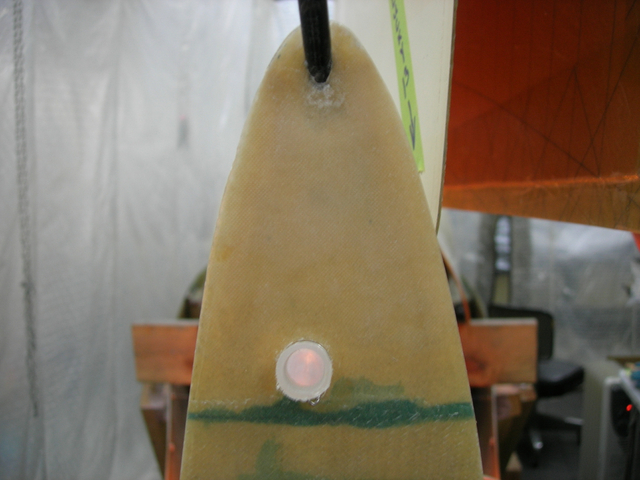

Will route black conduit to Bob Archer antenna and add translucent conduit from fin cap after top is bonded on.
Y9-04-16

Date: 04/14/2009
