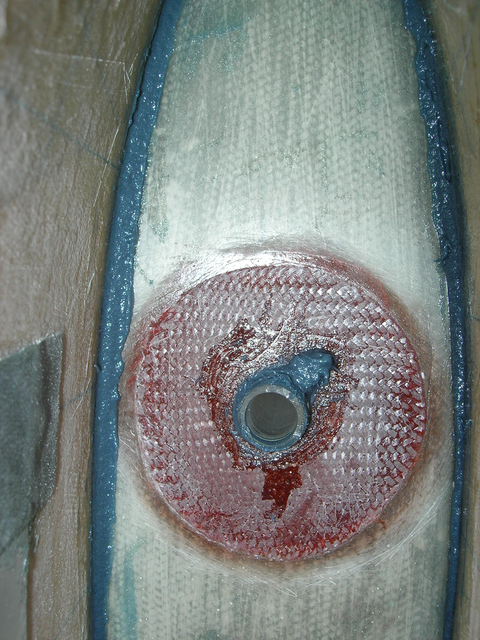

Sternpost bonding in 1.

Conduit installed for fin cap. Top of conduit got a double wrap of .041" safety wire and tail was Redux/floxxed to top horizontal fin rib.
Y9-05-08

Date: 05/06/2009
