IMG_5308

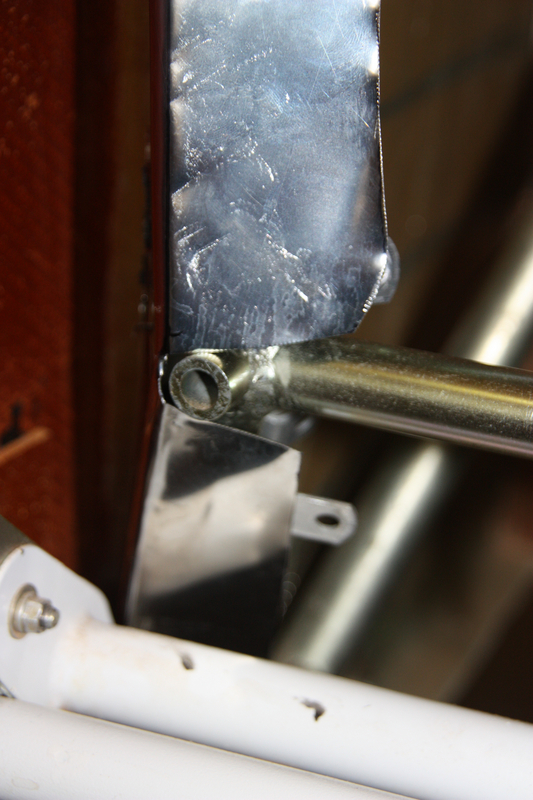

Fitting the side piece, the first problem becomes visible. It is attached to the frame using two P clips. The upper one is fine, but the lower one sticks out from underneath the lower flange. This flange is narrower than the upper, which IS according to template. TIP- make the flange wider, if only locally.

Date: 03/17/2013
