imm008_9

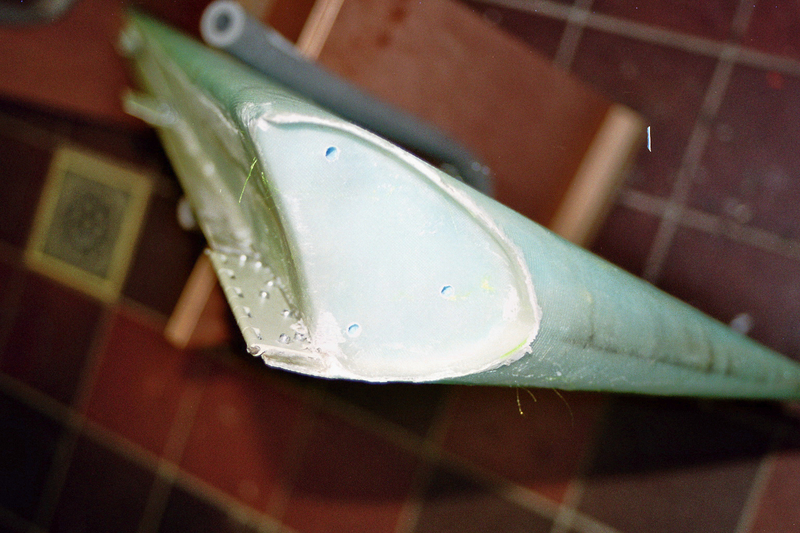

Foam cleared, first 3 plies on and ready for nutplate installation.
Note that where the flange has been removed is totally diffferent from the manual, but this is the only way that makes sense.
