DoorSupportMod46Ann

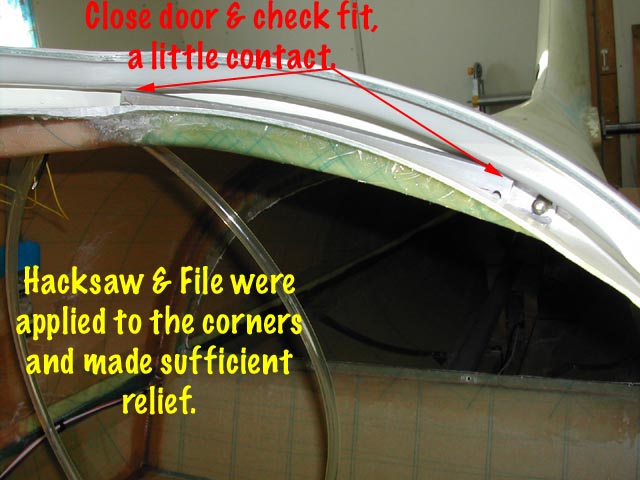

When the door is closed, it still makes a slight contact on the ends of the arms. Application of a hacksaw to the outboard end and a file to both ends cured this contact allowing the door to close completely.

Date: 02/12/2006
