EISWiringLabels01Ann

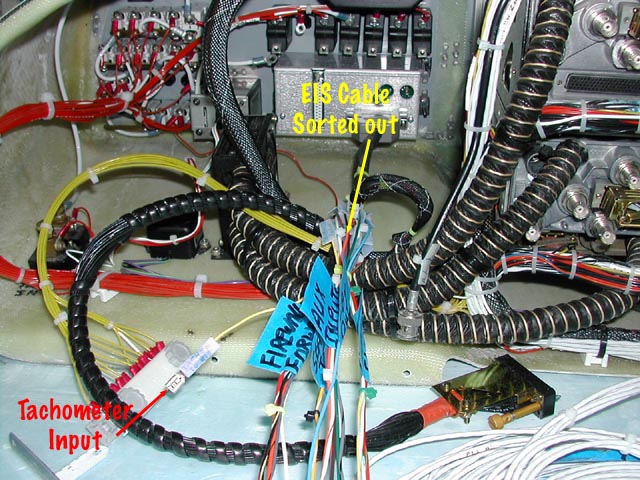

Sorted out the various bundles of wires from the EIS Connector A into:
1. Firewall Forward
2. Fuel Flow
3. Serial I/O
4. Aux Input #1 - #6
5. Tachometer Input & 4.8 volt output.

Date: 05/31/2004
