RudderMount09Ann

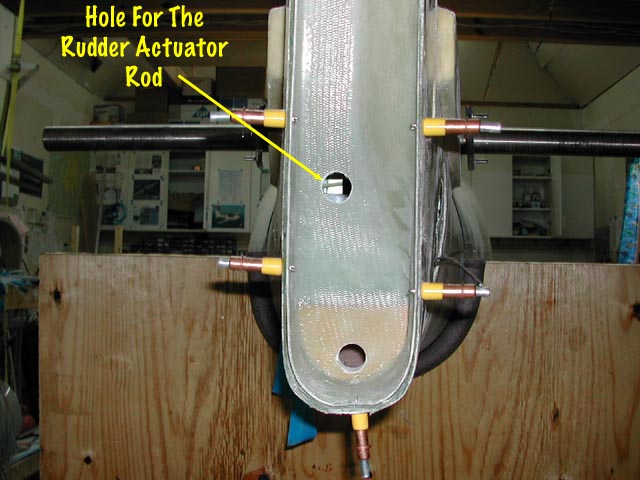

With the tip in place, I could figure out where the rudder will be positioned, vertically. From there, I could determine where the hole for the rudder actuator rod needed to be located in the sternpost. I was then able to drill the hole.

Date: 06/14/2004

Full size: 640x480
