PortWingWiring05

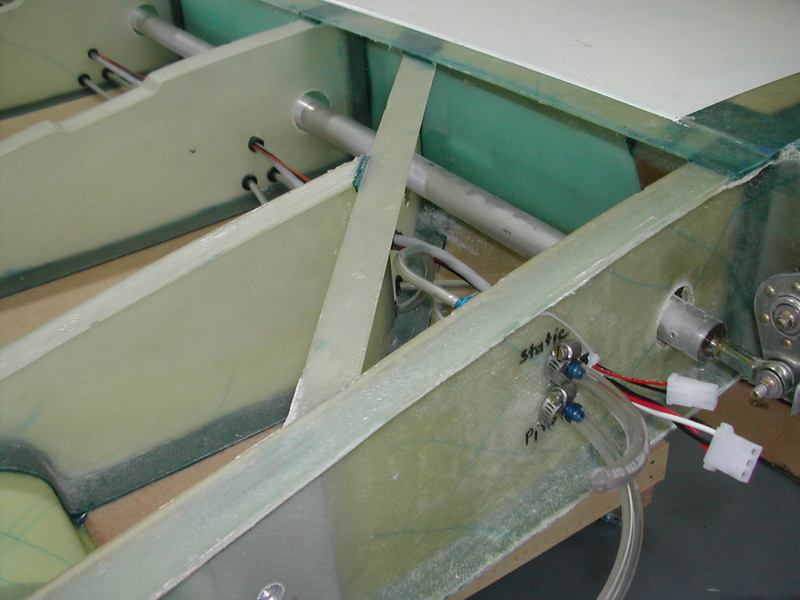

Root end of the light wiring with connectors installed. Don't scrimp on the wire. Leave plenty to work with. Honestly, I didn't leave enough. And these connectors are too weenie. You really need a set of good waterproof trailer light connectors.

Date: 08/18/2003

Size:
Full size: 1600x1200
