WingSet47

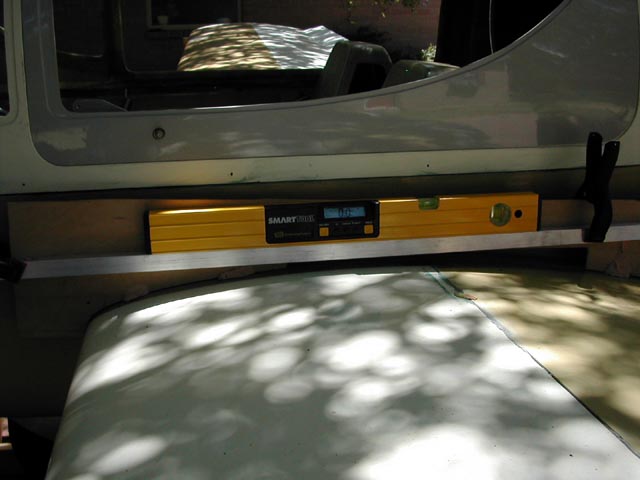

At this point it became possible to actually begin to set the wing incidence. First, I calibrated the digital level. Next, checked the fuselage for level, it did need a little adjustment. With the wings on and the fuselage level, it was time to set the port wing. Put on the wing template, level support tubing and level. Tried to remove the template and level so I could set the starboard wing. That moved the wing so I decided to leave it all in place till the port leading edge lift socket sets. I'll do the starboard side tomorrow. Braced the wing to a 2.5 degree incidence, i.e. level shows 0.0 degrees.

Date: 07/23/2004
Full size: 640x480
