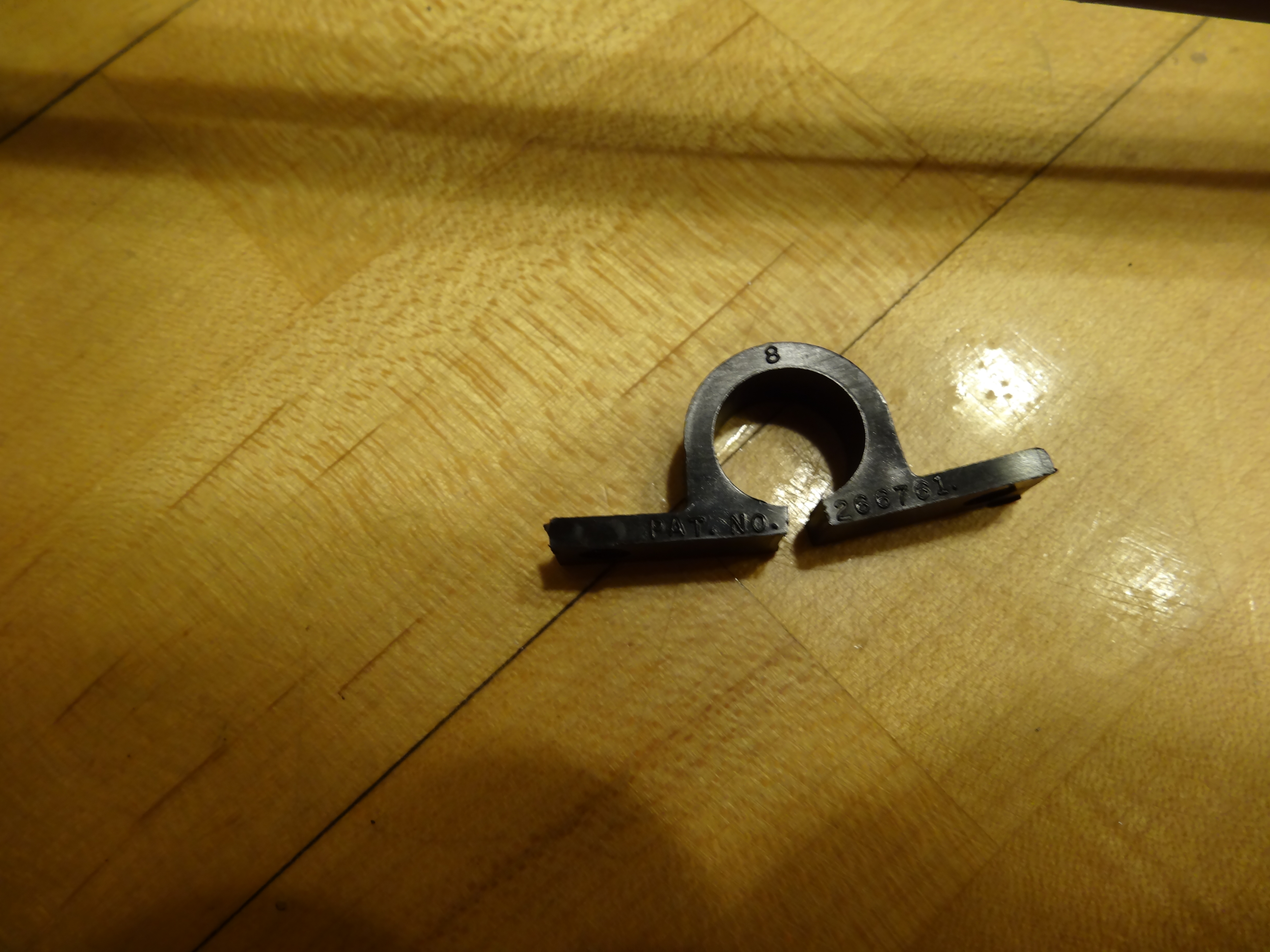

Clamps to be used Y13-12-15 1 of 2

After we were able to operate things and study, we don't need to make a clamp extension that goes aft of the front of the seat back.
We will use one, perhaps two of these clamps we purchased from McMaster.
They have a 1/2" ID, and the nice thing is they allow the cable to move slightly fore and aft without skewing and jamming.
Thus the Y13-11-27 idea in the prior picture will not be used.

Y13-12-15

Date: 12/16/2013
