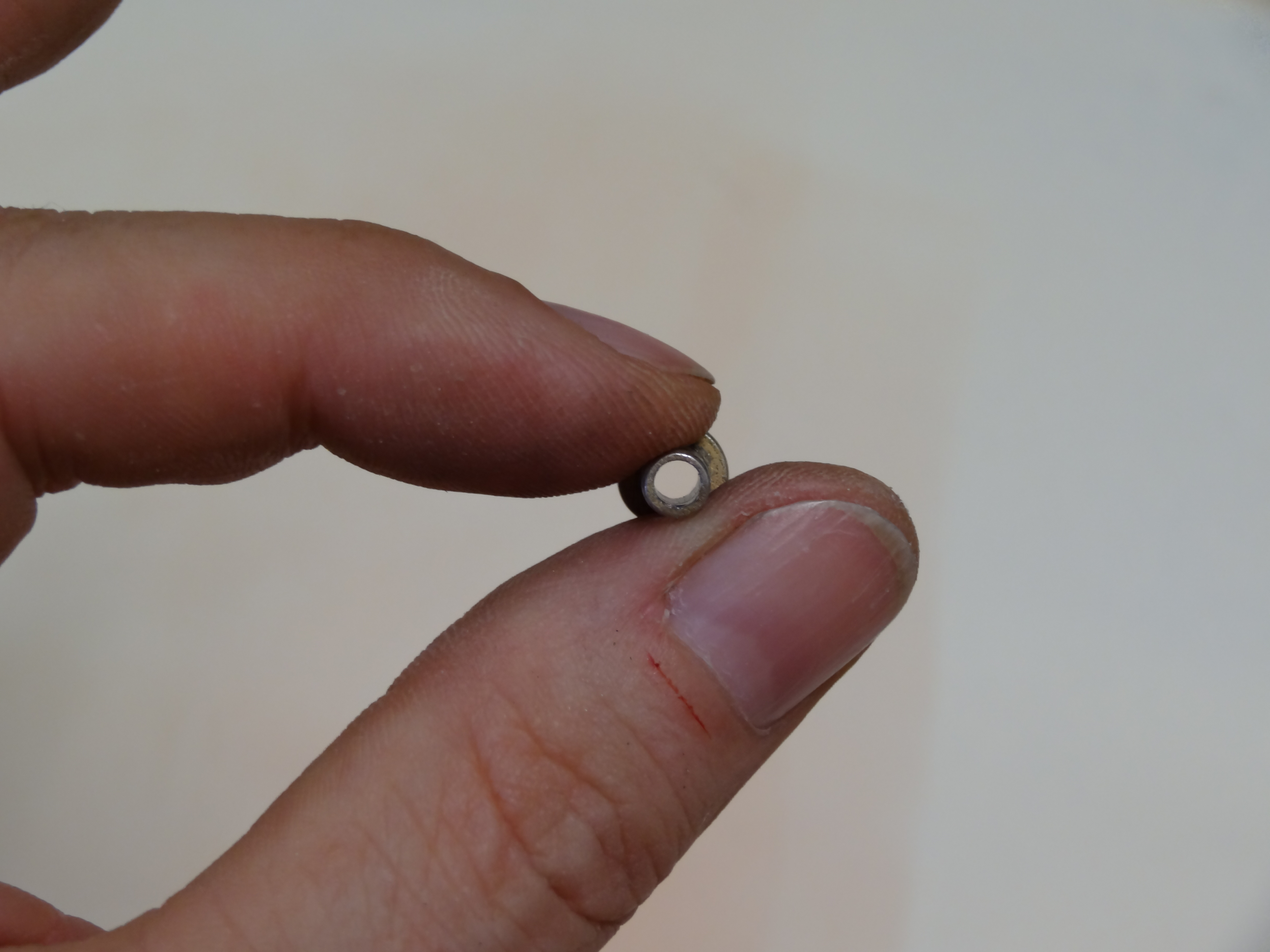

FL 18 hollow pivot 2

I could have made it work, but had a better idea once I was able to study the plane.
My machine shop is at my home, sometimes it takes a few extra steps/trips.
I made this after reading a post on the forum, had two 3/16" diameter clevis pins hanging around, so bored them without being able to study the plane up close and personal.
Y13-08-03

Date: 08/04/2013
