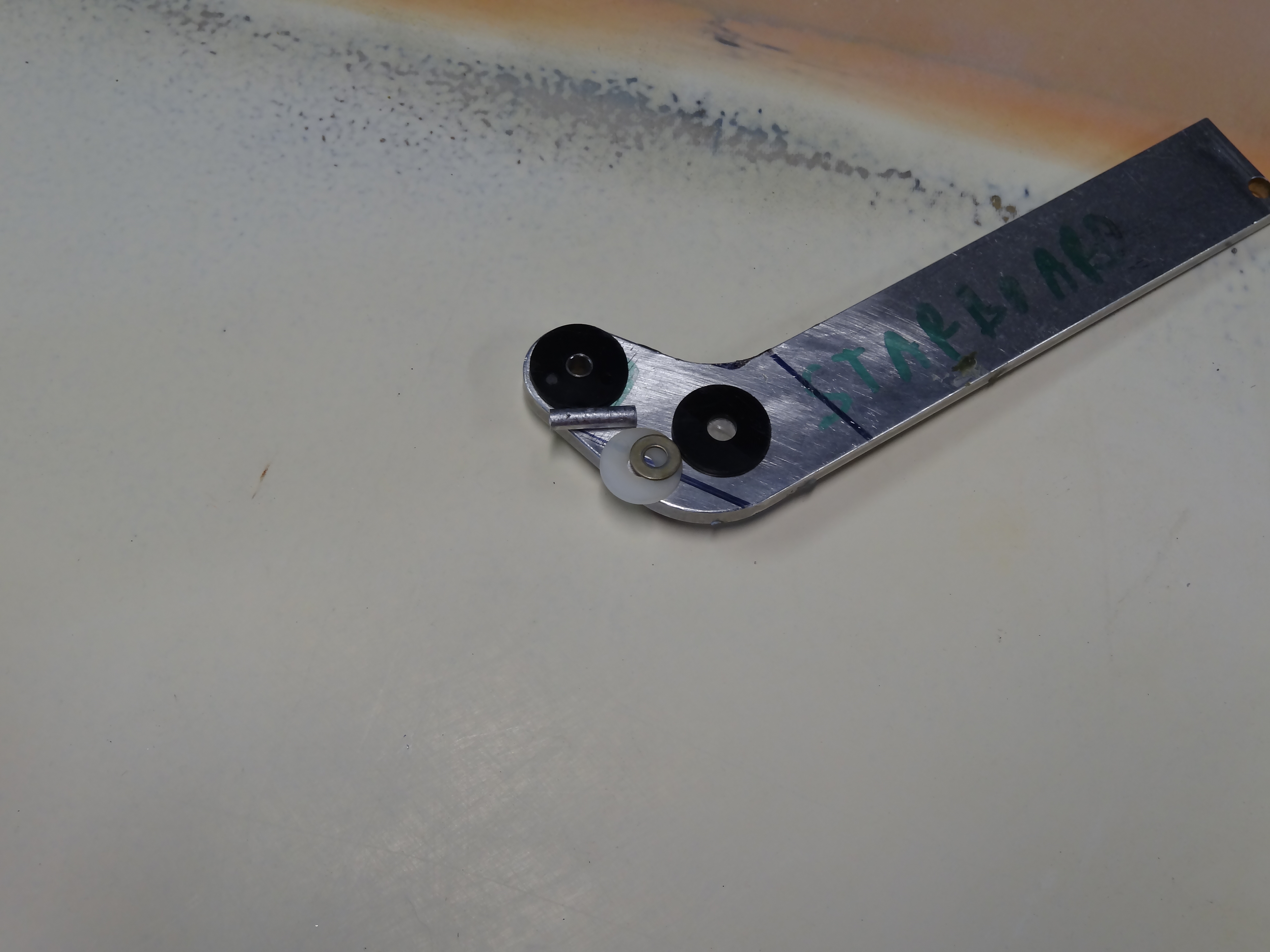

FL 18 hollow pivot 5

Larger diameter of black washers are welcomed.
With two of them, FL 18s will align perfectly and repeatable with FL 16s once pivot tube and clamp installed.
Black set of black washers only being used for bonding in FL-18s.
Y13-08-03

Date: 08/04/2013

Size:
Full size: 4896x3672
