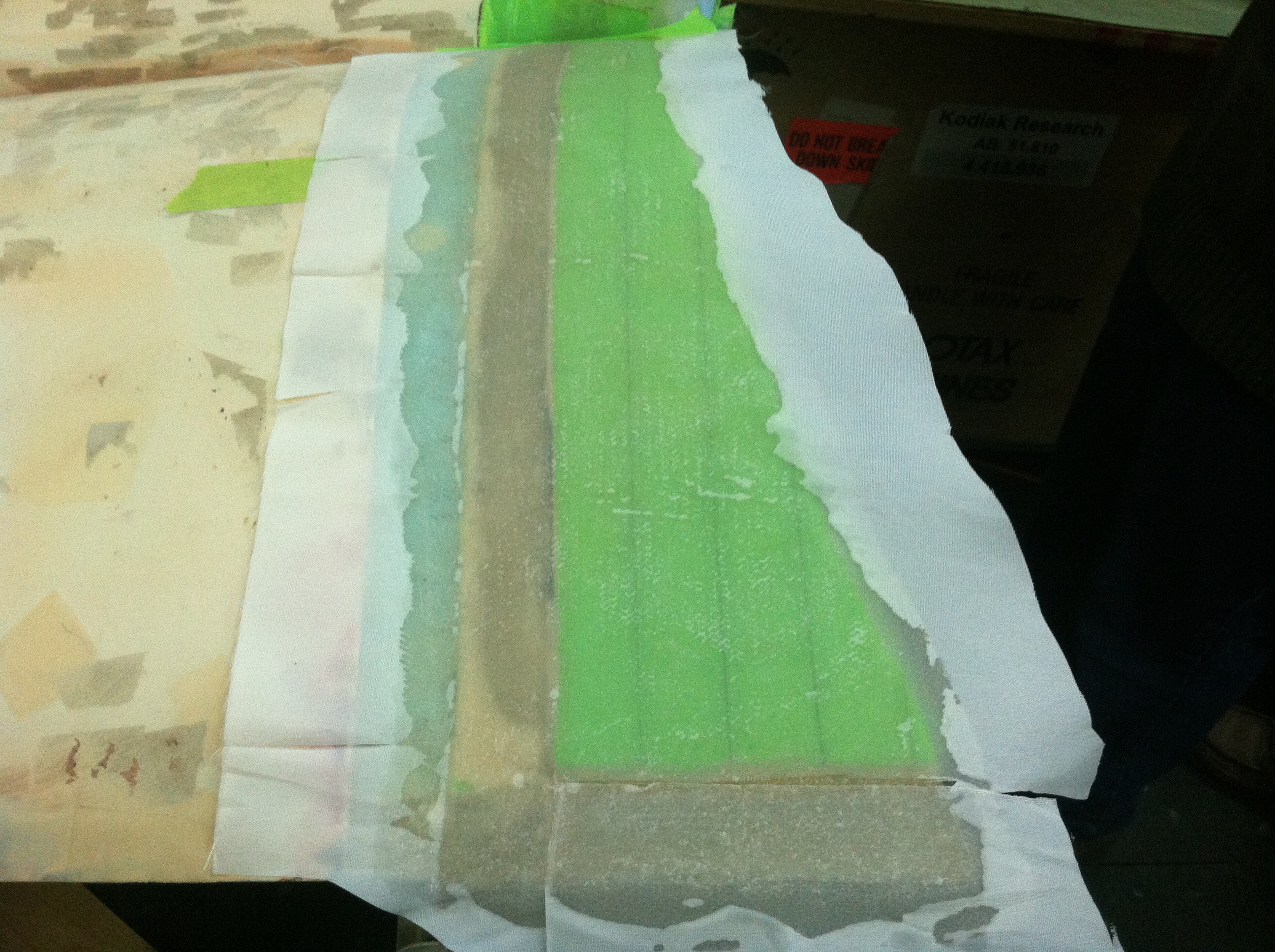

Flap extension 19

Gotta be careful making sure things are clean and scuff sanded where resin goes, even just a thin layer. You can have problems later on with fill and paint staying stuck if you painted resin on an unprepared surface. Easy to do with Peel Ply.

Y13-11-25

Date: 11/07/2013
