Making awful fit of lift pads correct 23.

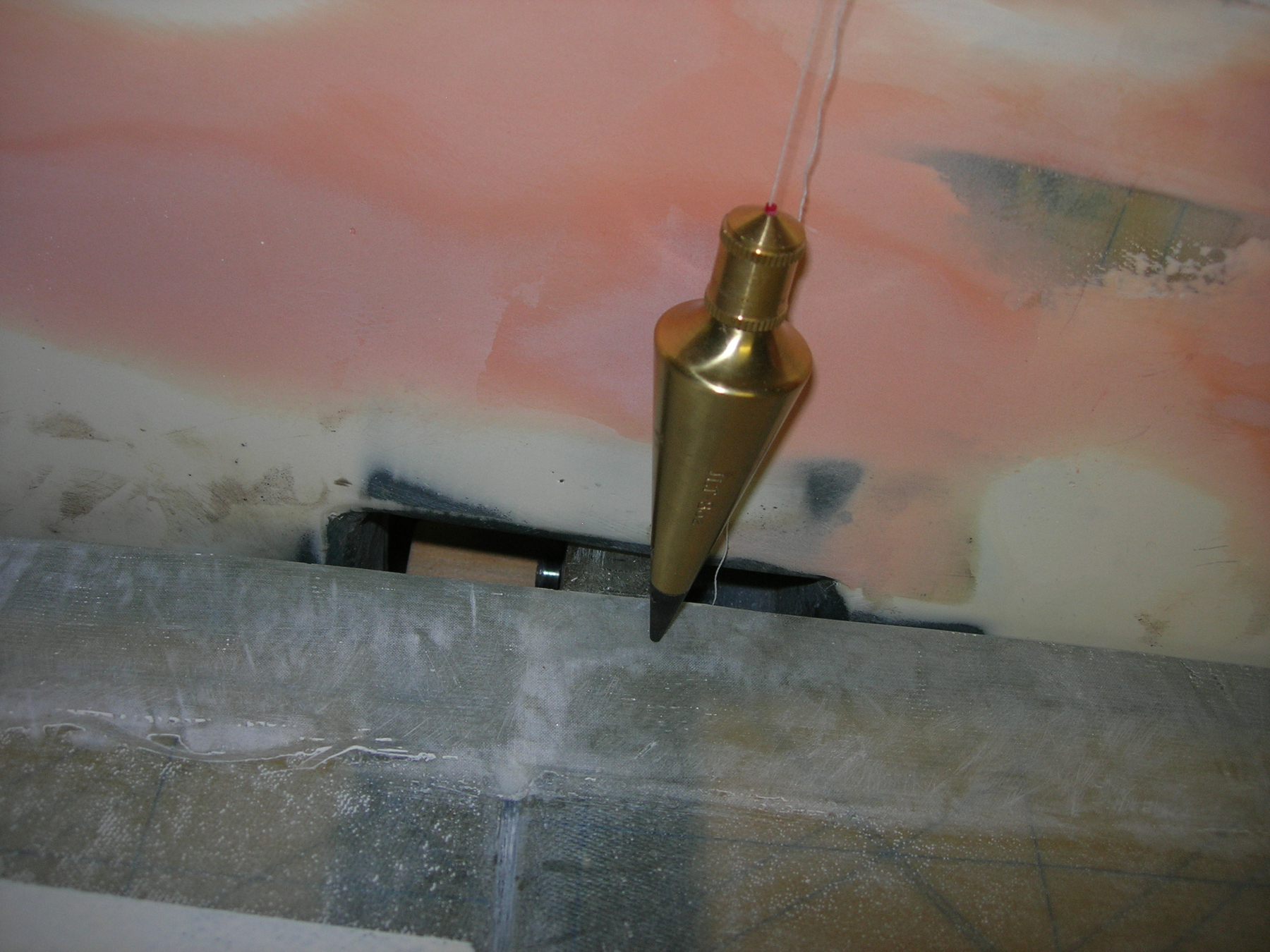

The Port front lift pin is still hitting fuse, skewing port wing aft a little. We later added a strip of masking tape to spar edge for better visual acuity.
Y10-10-14

Date: 10/14/2010
