Bobs_tailwheel

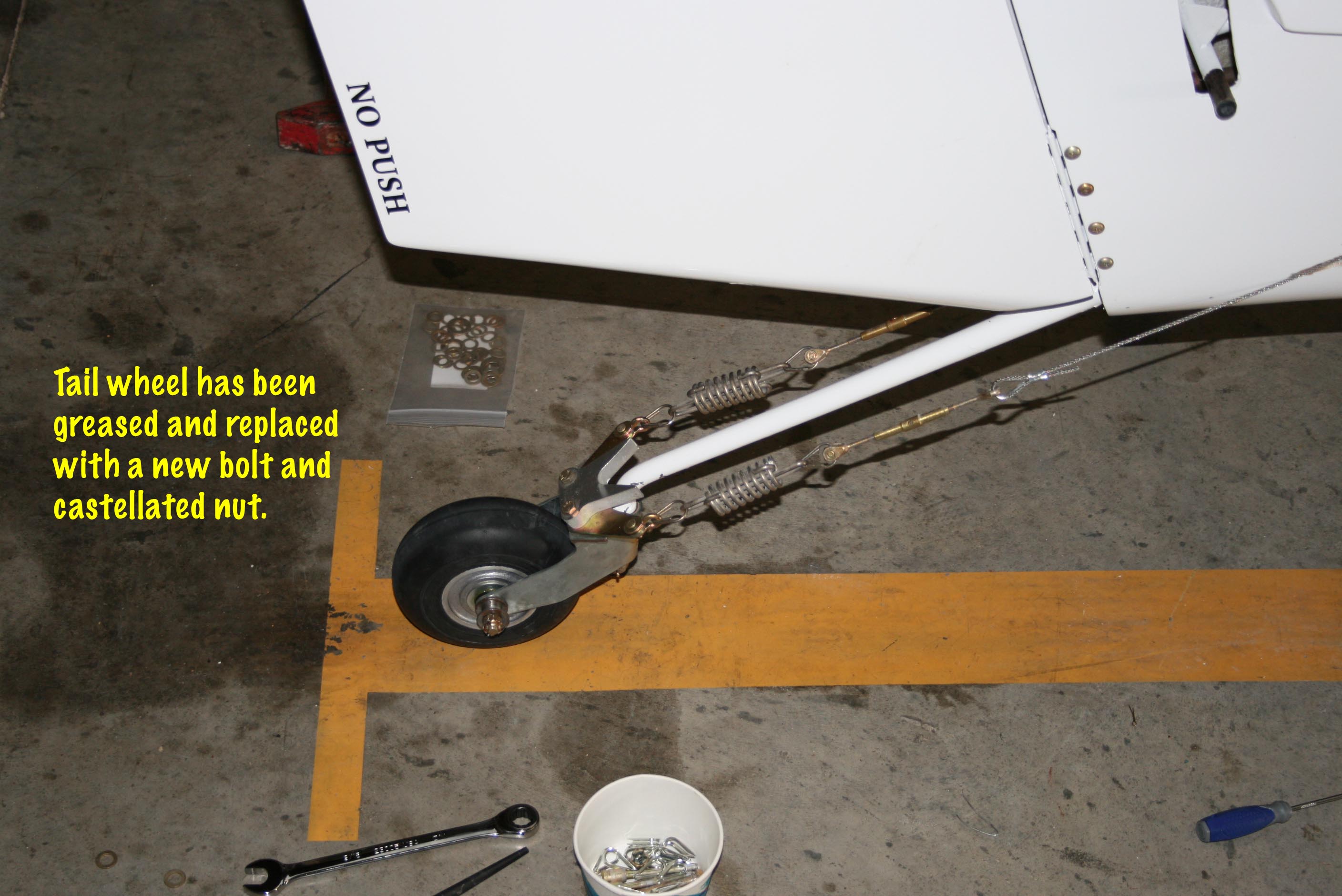

Bob Borger's tailwheel stop as supplied with Graham Singleton rudder and tailwheel drive modification.
Y9-01-28
He currently has a ratio of about 1.0 for rudder to ~ .75 for tailwheel. N4211W with standard arrangement XS tailwheel/rudder horn has ~ 1.0 to 1.0.
I read that Graham Singleton tailwheel mod came with 1.0 to 2.0, some reduced to 1.0 to 1.5 or 1.0 to 1.0 for neubies.
Y9-05-27

Date: 01/28/2009
