DSCF0691

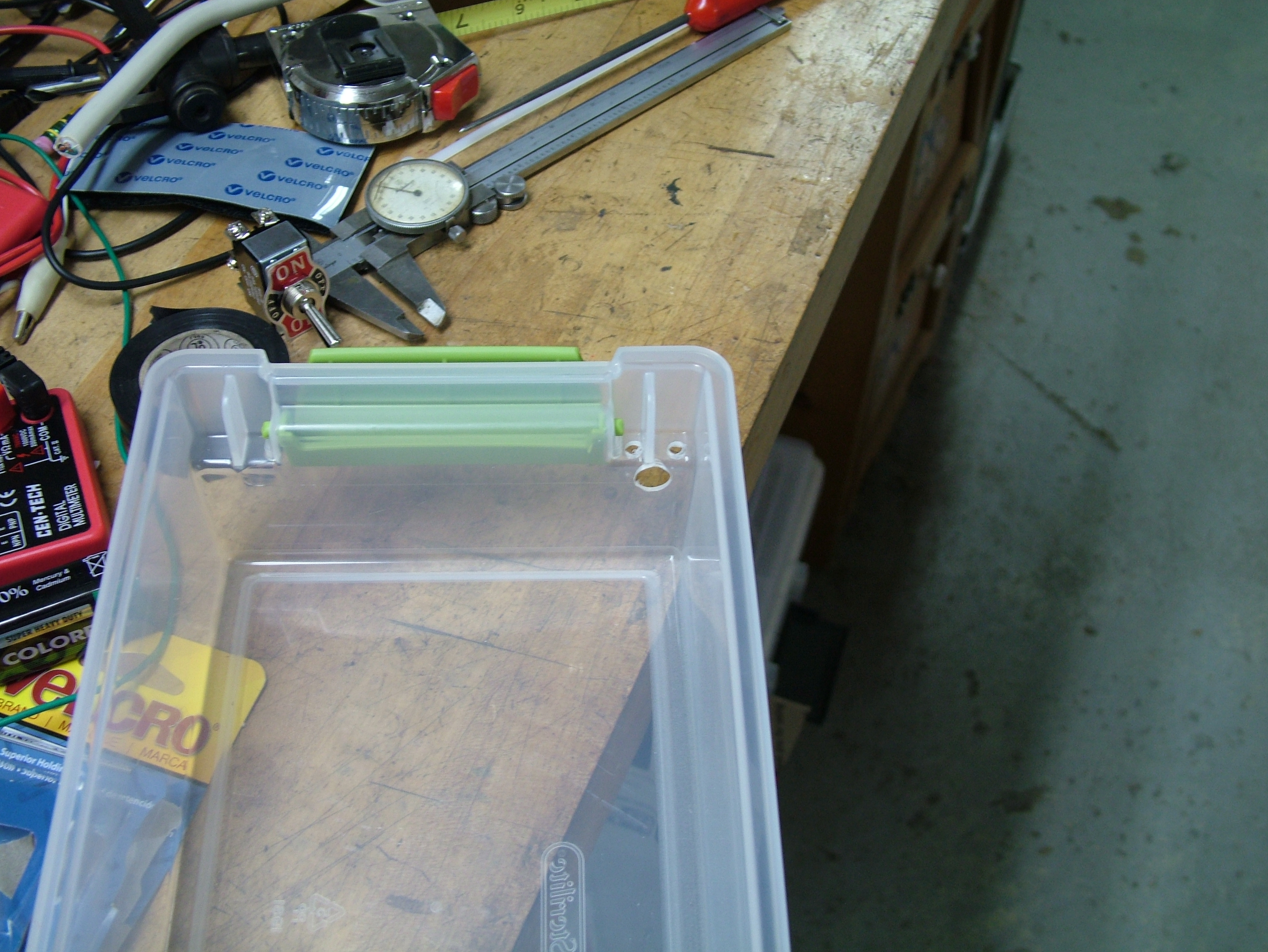

The corners of this Target box have reinforcements. I selected this location to punch through with the line cord because of the ability to Ty Wrap the line cord to this reinforced area, hence eliminating extra hardware. It works great! Serendipity again!
I used the corner diagonally across from this one for the two wires going to the generator.

Y11-09-06

Date: 08/02/2003
