Port instrument insert 7.

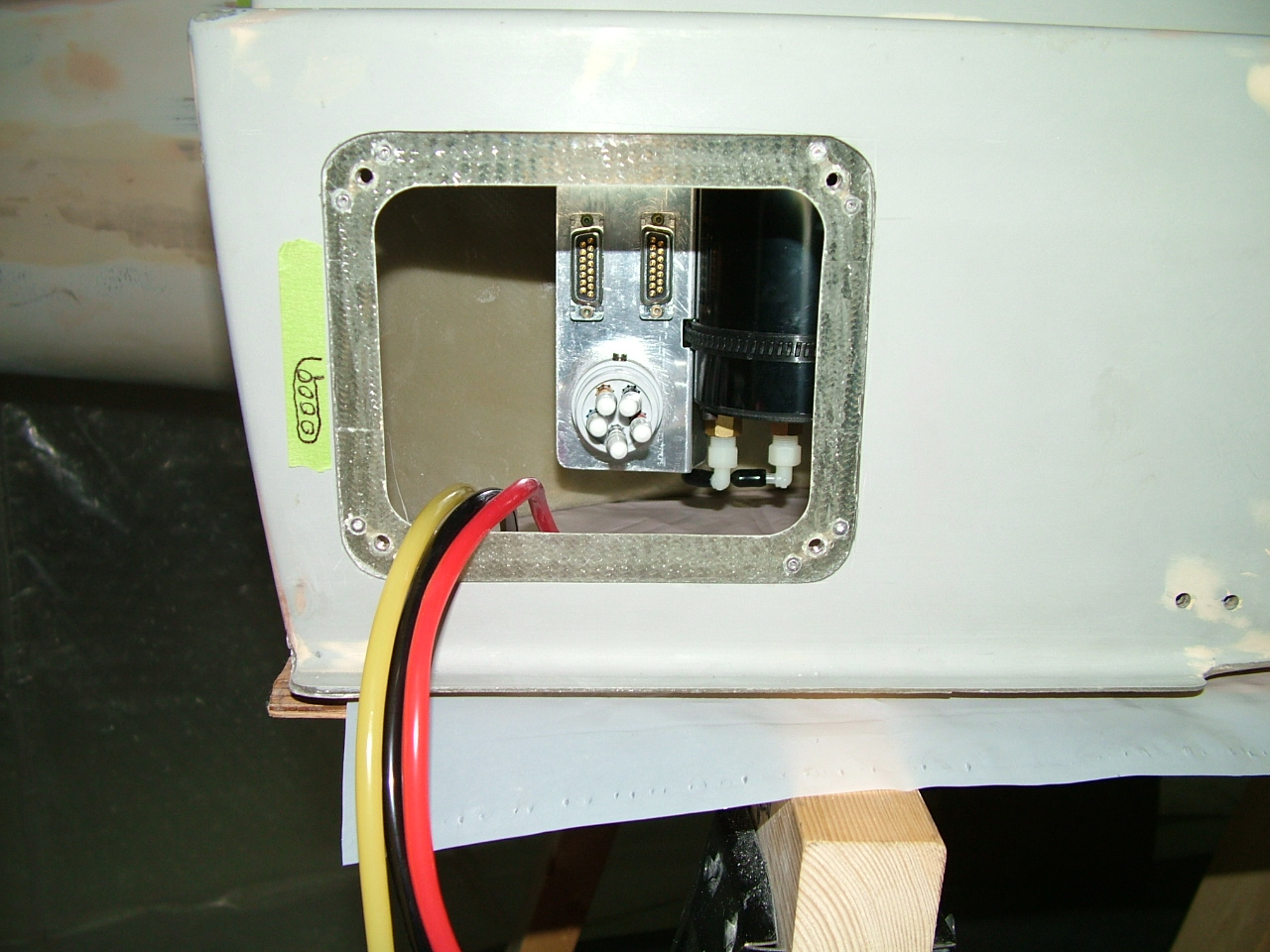

Four color coded Tygon tubes will live in a cutout depicted by green masking tape.
