Contact area for hardware made flat.

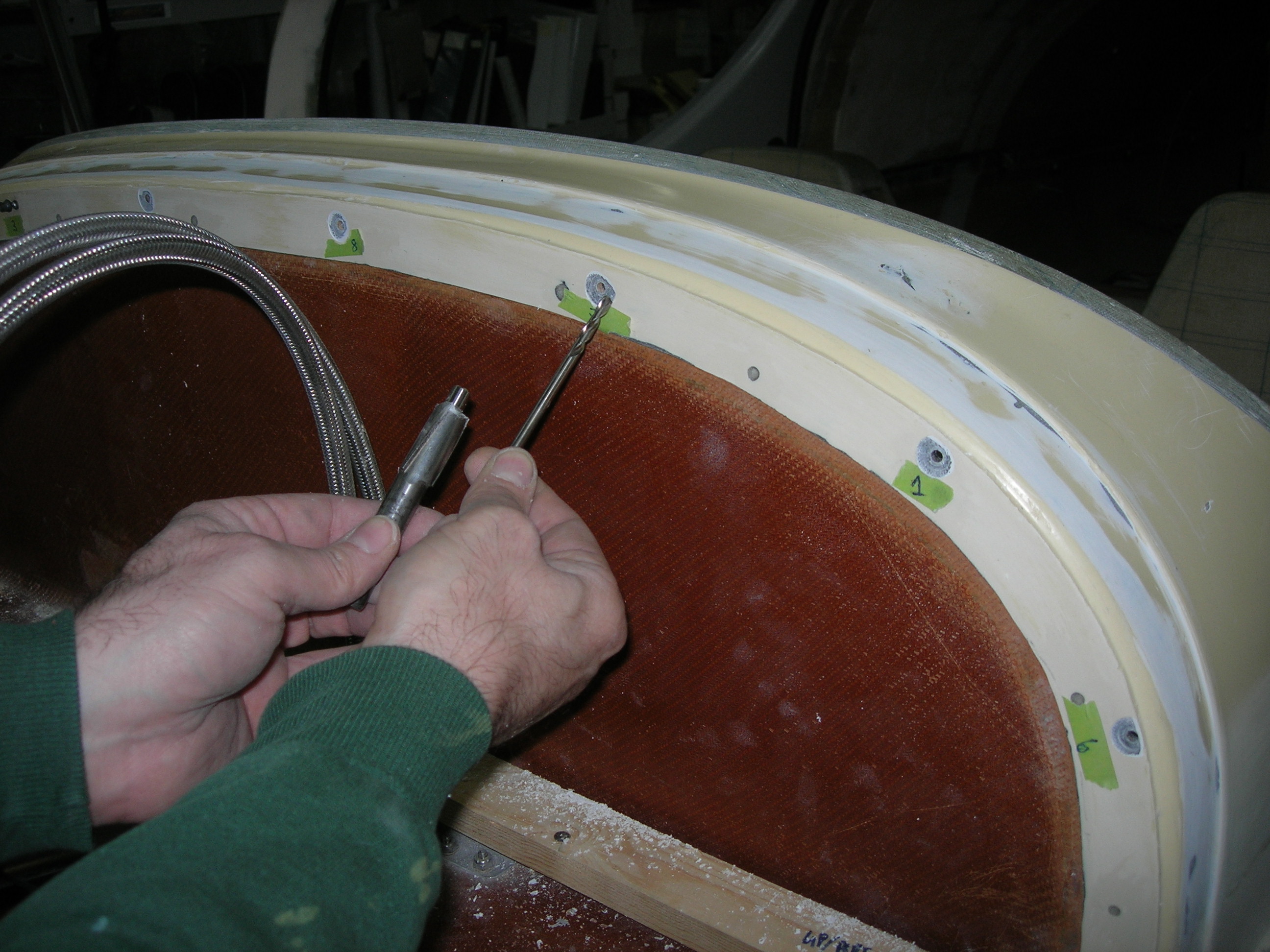

Used a counterbore with the shank of a 3/16" drill as guide to make contact area of instrument module flat.
Y10-01-24

Date: 01/17/2010

Size:
Full size: 2592x1944

Contact area for hardware made flat.
